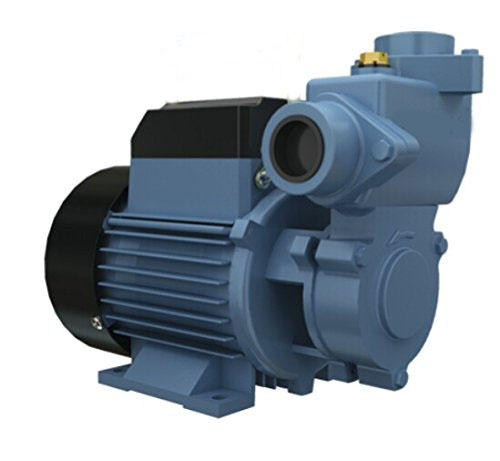

Single Phase Centrifugal Pump

Centrifugal Pumps are one of the most selling product of JB MOTORS. These motors are manufactured in various designs and capacities. These motors are precisely engineered as per the industry guideline to make sure high efficiency and working life. All Centrifugal Pumps feature brass impeller and copper winding which provides high performance, durability, efficiency, and reliability.

Speed
2880 rpm
Head
30-10 m
Phase
Single Phase
Discharge
600-2400 lph
Body Material
Cast Iron
Voltage
180-240 V
Motor Power
1 HP
Frequency
50 Hz

These motors are commonly used in:-

Salient Features:-



    1. Brass Impeller.
    2. Double Ball Bearings.
    3. Thermal Overload Protection
    4. Require less maintenance
    5. Better insulating materials used to withstand temperature rise
    6. Superior mechanical shaft seal for longer life and effective sealing against water leakage.a
    7. The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
    8. Grease lubricated double sealed ball bearings.
