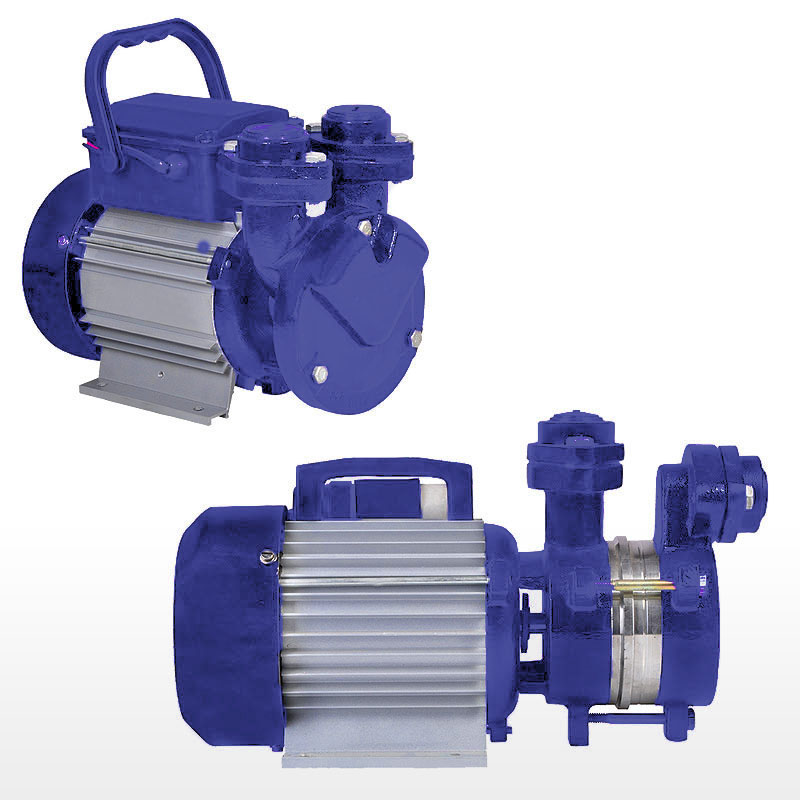

Self Priming Mini Mono Pumps

H.P. Range
0.5 H.P. to 1.0 H.P. Single Phase
Operating head Range
8 to 40 Metre
Operating Discharge
800 To 2800 LPH / 2.8 To 16.8 m3/h
Operating Voltage Range
220 Volts/50 Hz, +6% & -15% in single Phase
Max. Temp. of Liquid
33°C
Max. Permissible amount of sand in the water
10 grams/cubic Metre
Motor Body
Extruded Aluminium With Powder Coated
Motor & Pump Shaft
S.S. 410
Rotor
Die Casted Aluminium
Winding
EC Grade 99.9% Pure Copper
Journal Bearing
HCH ZZ
Mechanical Seal
Carbon Vs. Ceramic
Housing, Bracket & Casing
FG 260 Grade Cast Iron With Epoxy Coating
Impeller
Brass

Applications:-



    1. Domestic Water Supply
    2. Gardening
    3. Dewatering

Salient Features:-



    1. All casting components are machined on CNC machines with very close tolerances which reduce noise and increase product life.
    2. Balanced and rigid construction.
    3. Motor is protected by thermal overload protector (TOP).
    4. Pre lubricated doable shielded SKF ball Bearing used for long life.
    5. High performance product with low power consumption.
    6. Motor winding & stamping with synthetic varnish for better moisture resistance.
    7. Powder coated aluminum motor body and inside fixed capacitor with handle for avoid damage and short circuit.
    8. Adequate & un-obstructed self priming capacity due to excellent hydraulic design & workmanship
    9. Better aesthetics with compact design
    10. All pump set are tested as per IS standard
    11. Customized model is available on request
