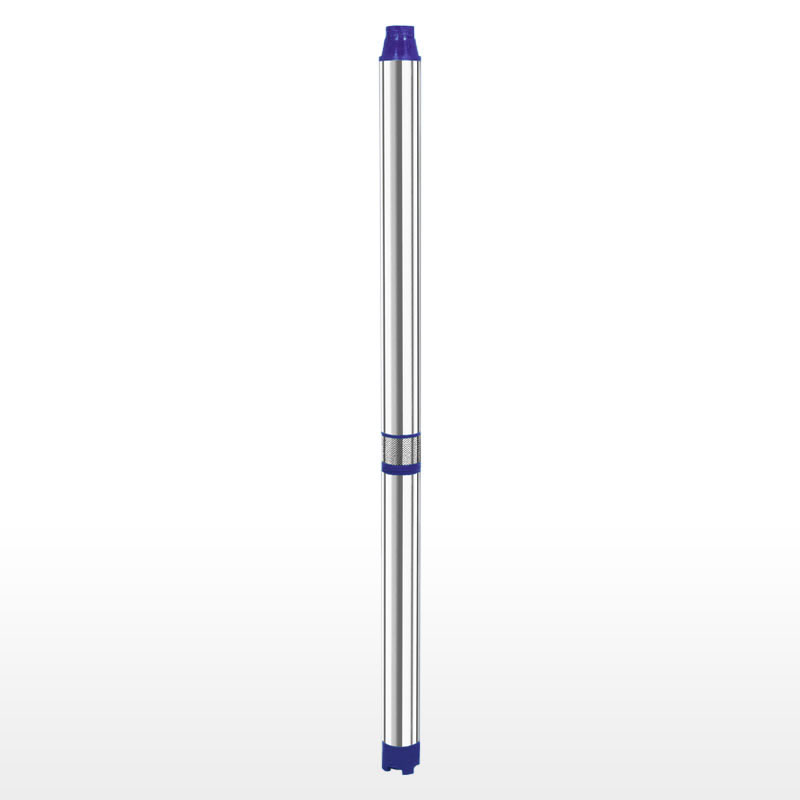

Vertical Submersible Pumpset 80MM

JB Motors’s Vertical Submersible Pumps with wide range gives right solution against the customer requirements. All pumps are leak proof stainless steel jacketed. V3 borehole submersible pumps are suitable for 3" or larger boreholes delivering the optimum amount of water and pressure for general home and farm use. V3 borehole submersible pumps are available in different sizes with flows upto 200 LPM. Pumps are designed to meet all your borehole pumping applications. All JB pumps are manufactured as per IS: 8034 Standard

H.P. Range
1.5 H.P. to 5.0 H.P. Single Phase , 1.5 H.P. to 7.5 H.P. Three Phase
Operating head Range
15 to 363 Metre
Operating Discharge
22 To 350 LPM / 1.32 To 21 m3/h
Operating Voltage Range
160-240 Volts single Phase, 300-440 Volts Three Phase
Rated Volts / Frequency
220 Volts +6%∓-15%/50 Hz in single Phase, 415 Volts +6%∓-15%/50 Hz in Three Phase
Max. Temp. of Liquid
33°C
Max. Permissible amount of sand in the water
20 grams/cubic Metre
Bowl
GF 30 Noryl With S.S 304 Neckring
Impeller
GF 30 Noryl With S.S 304 Neckring
Suction & Outlet
Fg 260 Grade Cast Iron With Epoxy Coating
Motor & Pump Body
Stainless Steel
Motor & Pump Shaft
S.S. 410 Or S.S. 431
Rotor
EC Grade Copper Conductors
Winding
EC Grade Copper With Three Coated Polywrap
Journal Bearing
LTB-4
Thurst Bearing
Carbon Vs. Self Aligh S.S. 420 Segments
Housing, Connectio Plate & Base
FG 260 Grade Cast Iron With Epoxy Coating

Salient Features:-



    1. Proven & reliable design for critical conditions.
    2. State of the art design, delivers optimum performance and reliability in the toughest conditions.
    3. Mounting parameters and spline coupling are as per international NEMA standard.
    4. Rubber & bronze bearing provide for low friction and high wear resistance.
    5. Standard 2 pole, speed 2900 rpm motor.
    6. High pumping efficiency for reduced running costs.
    7. Lip seal and sand guard to prevent ingress of impurities into the motor.
    8. Suitable for 90 mm borewell.
    9. Noryl Bowl impeller set with S.S. neckring.
