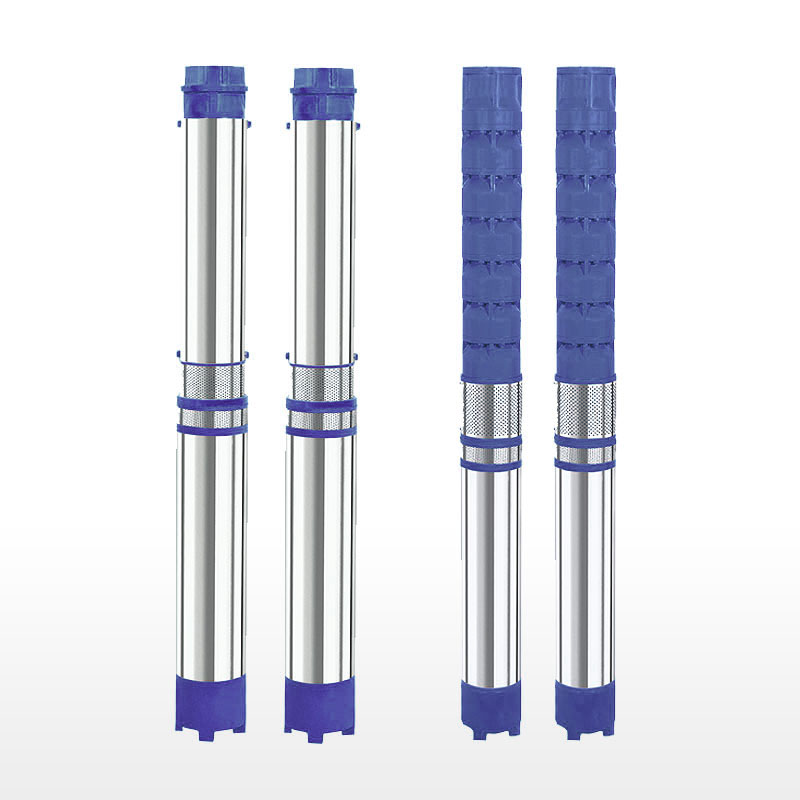

Vertical Submersible Pumpset 125MM

Category Submersible Borewell Pumps

JB Motors’s Vertical Submersible Pumps with wide range gives right solution against the customer requirements. All pumps are leak proof stainless steel jacketed. V5 borehole submersible pumps aret suitable for 5" or larger boreholes delivering the optimum amount of water and pressure for general home and farm use. V5 borehole submersible pumps are available in different sizes with flows upto 800 LPM. Pumps are designed to meet all your borehole pumping applications. All JB pumps are manufactured as per IS: 8034 Standard

H.P. Range	3.0 H.P. to 5.0 H.P. Single Phase , 3.0 H.P. to 10 H.P. Three Phase
Operating head Range	11 to 385 Metre
Operating Discharge	33 To 550 LPM / 1.98 To 33 m3/h
Operating Voltage Range	160-240 Volts single Phase , 300-440 Volts Three Phase
Supply	30, 180-440V AC, 50Hz
KW	1.2 to 18
Rated Volts / Frequency	220 Volts +6%∓-15%/50 Hz in single Phase , 415 Volts +6%∓-15%/50 Hz in Three Phase
Max. Temp. of Liquid	33°C
Max. Permissible amount of sand in the water	20 grams/cubic Metre
Method Of Starting For Three Phase	3.0 H.P TO 7.5 H.P DOL , 10 H.P Star Delta
Bowl	GF 30 Noryl With S.S 304 Neckring
Impeller	GF 30 Noryl With S.S 304 Neckring
Suction & Outlet	Fg 260 Grade Cast Iron With Epoxy Coating
Motor & Pump Body	Stainless Steel
Motor & Pump Shaft	S.S. 410 Or S.S. 431
Rotor	EC Grade Copper Conductors
Winding	EC Grade Copper With Three Coated Polywrap
Journal Bearing	LTB-4
Thurst Bearing	Carbon Vs. Self Aligh S.S. 420 Segments
Housing, Connectio Plate & Base	FG 260 Grade Cast Iron With Epoxy Coating

A combination of multistage centrifugal pump and submersible motor, is designed for applications like:

Salient Features:-

1. State of the art design delivers optimum performance and reliability in the toughest conditions.
2. Rubber & bronze bearing provide for low friction and high wear resistance.
3. Easy assembling, dismantling. Easily serviceable pump & rewindable motors
4. Suction screen and coupling are made of stainless steel.
5. High pumping efficiency for reduced running costs.
6. Light weight and compact.
