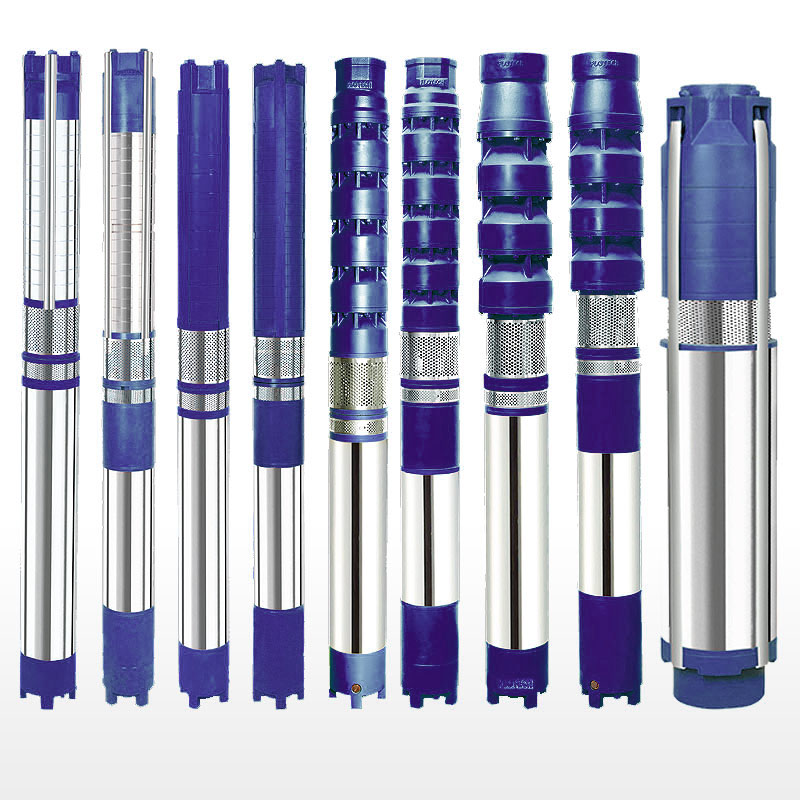

Vertical Submersible Pumpset 150MM

JB Motors’s Vertical Submersible Pumps with wide range gives right solution against the customer requirements. All pumps are leak proof stainless steel jacketed. V6 borehole submersible pumps are suitable for 6" or larger boreholes delivering the optimum amount of water and pressure for general home and farm use. V6 borehole submersible pumps are available in different sizes with flows upto 1500 LPM. Pumps are designed to meet all your borehole pumping applications. All JB pumps are manufactured as per IS: 8034 Standard

H.P. Range
3.0 H.P. to 5.0 H.P. Single Phase , 3.0 H.P. to 40.0 H.P. Three Phase
Operating head Range
10 to 450 Metre
Operating Discharge
75 To 1380 LPM / 4.5 To 82.7 m3/h
Operating Voltage Range
160-240 Volts single Phase , 300-440 Volts Three Phase
Rated Volts / Frequency
220 Volts +6%∓-15%/50 Hz in single Phase , 415 Volts +6%∓-15%/50 Hz in Three Phase
Max. Temp. of Liquid
33°C
Max. Permissible amount of sand in the water
20 grams/cubic Metre
Method Of Starting For Three Phase
3.0 H.P TO 7.5 H.P DOL , 10 H.P To 40 H.P Star Delta
Bowl
S.S 304
Impeller
S.S 304
Suction & Outlet
Fg 260 Grade Cast Iron With Epoxy Coating
Motor & Pump Body
Stainless Steel
Motor & Pump Shaft
S.S. 410 Or S.S. 431
Rotor
EC Grade Copper Conductors
Winding
EC Grade Copper With Three Coated Polywrap
Journal Bearing
LTB-4
Thurst Bearing
Carbon Vs. Self Aligh S.S. 420 Segments
Housing, Connectio Plate & Base
FG 260 Grade Cast Iron With Epoxy Coating

A combination of multistage centrifugal pump and submersible motor, is designed for applications like:



Salient Features:-



    1. More than 300 models which is suitable in all type of water and soil and giving grater performance for years.
    2. Dynamically balanced rotating parts to ensure vibration free operation and long lasting bearing life.
    3. Mounting parameters and spline coupling are as per international NEMA standard.
    4. Improved hydraulic design with increased efficiency in each design radial flow & Mix flow.
    5. All casting components are epoxy coated and rotor is chrome plated for corrosion resistance.
    6. High quality materials and CNC machined components ensure more reliability and better performance.
    7. Internal surface of motor is coated with corrosion resistance fluid.
    8. Pumps are equipped with a reliable non-return valve (NRV) to reduce thrust load of back pressure
    9. All pump set are tested prior to dispatch as per IS standard
    10. Heavy duty German carbon thrust bearing is used
