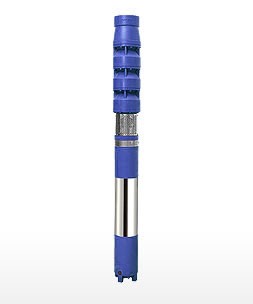

Vertical Submersible Pumpset 175MM

JB Motors’s Vertical Submersible Pumps with wide range gives right solution against the customer requirements. All pumps are leak proof stainless steel jacketed. V7 borehole submersible pumps are suitable for 7" or larger boreholes delivering the optimum amount of water and pressure for general home and farm use. V7 borehole submersible pumps are available in different sizes with flows upto 2000 LPM. Pumps are designed to meet all your borehole pumping applications. All JB pumps are manufactured as per IS: 8034 Standard

H.P. Range
7.5 H.P. to 30.0 H.P. Three Phase
Operating head Range
12 to 115 Metre
Operating Discharge
820 To 1900 LPM / 49.2 To 114 m3/h
Operating Voltage Range
300-440 Volts Three Phase
Rated Volts / Frequency
415 Volts +6%∓-15%/50 Hz in Three Phase
Max. Temp. of Liquid
33°C
Max. Permissible amount of sand in the water
20 grams/cubic Metre
Method Of Starting For Three Phase
10 H.P To 30 H.P Star Delta
Bowl
FG 260 Grade Cast Iron With Rubber Nackring
Impeller
S.S 410
Suction & Outlet
Fg 260 Grade Cast Iron With Epoxy Coating
Motor & Pump Body
Stainless Steel
Motor & Pump Shaft
S.S. 410 Or S.S. 431
Rotor
EC Grade Copper Conductors
Winding
EC Grade Copper With Three Coated Polywrap
Journal Bearing
LTB-4
Thurst Bearing
Carbon Vs. Self Aligh S.S. 420 Segments
Housing, Connectio Plate & Base
FG 260 Grade Cast Iron With Epoxy Coating

A combination of multistage centrifugal pump and submersible motor, is designed for applications like:



Salient Features:-



    1. Proven & reliable design for critical conditions.
    2. State of the art design, delivers optimum performance and reliability in the toughest conditions.
    3. Bronze ltb-4 bush & carbon thrust bearing provide low friction and high wear resistance.
    4. Easy assembling, dismantling, easily serviceable pump & rewindable motors.
    5. Suction screen and coupling are made of stainless steel.
    6. Standard 2 pole, speed 2900 rpm motor.
