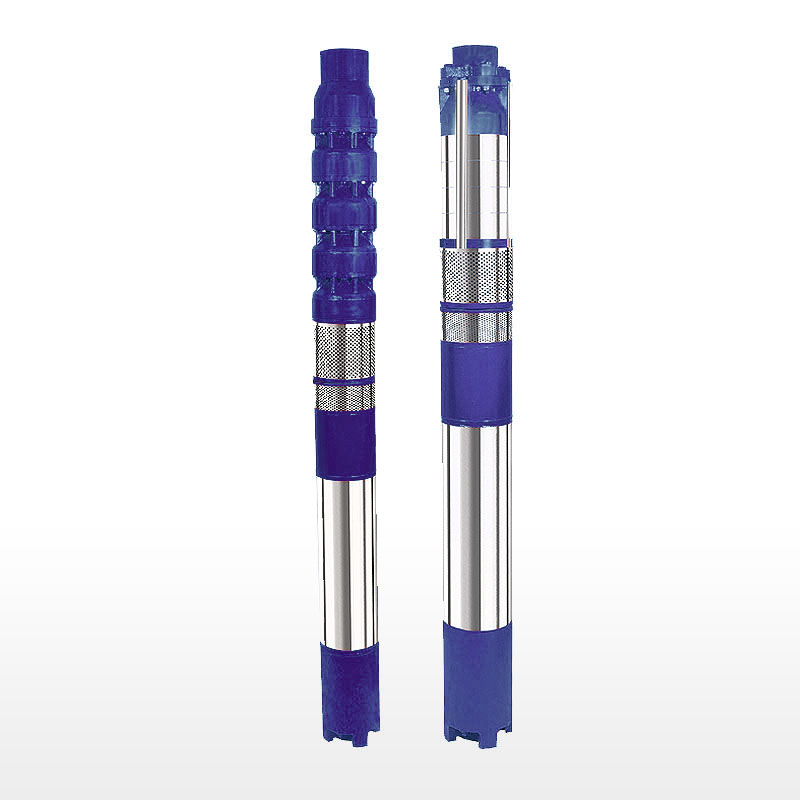

Vertical Submersible Pumpset 200MM

JB Motors’s Vertical Submersible Pumps with wide range gives right solution against the customer requirements. All pumps are leak proof stainless steel jacketed. V8 borehole submersible pumps are suitable for 8" or larger boreholes delivering the optimum amount of water and pressure for general home and farm use. V8 borehole submersible pumps are available in different sizes with flows upto 2850 LPM. Pumps are designed to meet all your borehole pumping applications. All JB pumps are manufactured as per IS: 8034 Standard

H.P. Range
15.0 H.P. to 75.0 H.P. Three Phase
Operating head Range
20 to 315 Metre
Operating Discharge
480 To 2160 LPM / 28.8 To 129.6 m3/h
Operating Voltage Range
300-440 Volts Three Phase
Rated Volts / Frequency
415 Volts +6%∓-15%/50 Hz in Three Phase
Max. Temp. of Liquid
33°C
Max. Permissible amount of sand in the water
20 grams/cubic Metre
Method Of Starting For Three Phase
15 H.P To 75 H.P Star Delta
Bowl
FG 260 Grade Cast Iron With Rubber Nackring
Impeller
S.S 410
Suction & Outlet
Fg 260 Grade Cast Iron With Epoxy Coating
Motor & Pump Body
Stainless Steel
Motor & Pump Shaft
S.S. 410 Or S.S. 431
Rotor
EC Grade Copper Conductors
Winding
EC Grade Copper With Three Coated Polywrap
Journal Bearing
LTB-4
Thurst Bearing
Carbon Vs. Self Aligh S.S. 420 Segments
Housing, Connectio Plate & Base
FG 260 Grade Cast Iron With Epoxy Coating

A combination of multistage centrifugal pump and submersible motor, is designed for applications like:



Salient Features:-



    1. Long and heavy motor body having large volume of water inside to protect winding & maintain temperature and gives excellent efficiency.
    2. More than 150 models in radial flow & mix flow for appropriate selection as per requirement.
    3. Heavy duty carbo teflon thrust bearing used with german technology.
    4. Dynamically balanced rotating parts to ensure vibration free operation and long lasting bearing life.
    5. All casting components are epoxy coated and rotor is chrome plated for corrosion resistance.
    6. High quality materials and CNC machined component ensure more reliability and better performance.
    7. Internal surface of motor is coated with corrosion resistance fluid.
    8. Pumps are equipped with a reliable non-return valve (NRV) to reduce thrust load of back pressure
    9. All pump set are tested prior to dispatch as per IS standard
    10. Customized product is available on request
